JOCKEY PUMP 60HZ

1

product details

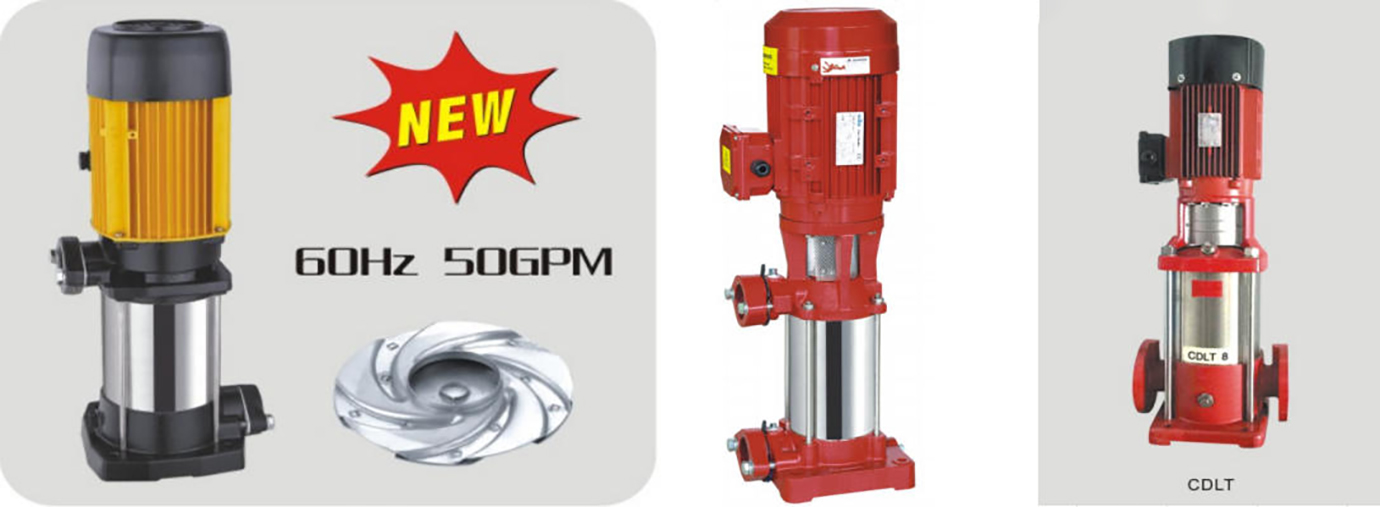

JOCKE PUMP60HZ4.jpg

Technical Data 3450 r/min 60HZ 50GPM

Model	Power		Q(m³/h)	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.2
Model	HP	KW	Q(l/min)	0	20	40	60	80	100	120	140	160	170
HMC 170-2SV	1	0.75	H meters	25	24	23	21	19	16	12	8	3	0
HMC 170-3SV	1.3	1		38	37	35	33	29	25	20	14	7	2
HMC 170-4SV	1.8	1.35		52	50	48	45	42	36	29	21	12	7
HMC 170-5SV	2.2	1.65		65	64	61	57	52	45	37	27	16	10
HMC 170-6SV	2.8	2.1		78	76	73	69	62	54	45	33	20	12
HMC 170-7SV	3.2	2.4		92	90	87	82	75	65	53	39	23	15

Technical Data 3450 r/min 60HZ 50GPM

Model	Power		Volt.	l/min	20	40	60	90	120	140	160	180
Model	HP	KW	V	m³h	1.2	2.4	3.6	5.4	7.2	8.4	9.6	10.8
HMC 35(3M)	2	1.5	220V/380V 60HZ 110V 60HZ	H meters	41	40	38	35	33	27	23	20
HMC 35(4M)	3	2.2			63	61	59	54	46	41	35	30
HMC 35(5M)	4	3			84	80	76	70	60	55	45	40
HMC 35(6M)	5	4			103	100	95	87	76	68	60	50
HMC 35(7M)	6	5			121	115	110	102	90	80	70	60

60HZ 50GPM

Model	Power		Flow Max	Flow Max	Flow Rate		Head Max	Head Rate	Pump Outlet	PACKAGE DIMENSIONS
Model	HP	KW	m³/h	GPM	m³/h	GPM	m	m	Inch	L	W	H
CDL-3A-3	3	2.2	22.7	50	12	50	50	30	2"	270	201	644
CDL-5A-4	4	3					80	50				714
CDL-7A-5.5	5.5	4					100	70				784
CDL-9A-7.5	7.5	5.5					130	95				845
CDL-11A-10	10	7.5					155	115				915

60HZ 100GPM

Model	Power		Flow Max	Flow Max	Head Max	Flow Rate	Head Rate	Pump Outlet	PACKAGE DIMENSIONS
Model	HP	KW	m³/h	GPM	m	m³/h	m	Inch	L	W	H
5CDL-5A-10	10	7.5	28	100	100	20	70	2"	101	37	33
15CDL-7A-15	15	11	28	100	122	23	70	2"	101	37	33

Performance table

Size and weight

Model	Driving motor		Q (m³/h)	1	1.5	2	2.5	3	3.5	4	4.5
	Driving motor
	(kw)	(hp)
CDLF2 CDLT2-2	0.55	0.75	H (m)	26	24	22	21	18	16	12	9
CDLF2 CDLT2-3	0.75	1		39	36	33	31	27	24	19	15
CDLF2 CDLT2-4	1.1	1.5		52	48	45	42	36	32	26	20
CDLF2 CDLT2-5	1.1	1.5		65	60	57	52	46	41	32	25
CDLF2 CDLT2-6	1.1	1.5		78	74	69	63	56	49	40	30
CDLF2 CDLT2-7	1.5	2		91	86	81	74	66	57	47	35
CDLF2 CDLT2-9	2.2	3		117	111	104	95	86	75	61	45
CDLF2 CDLT2-11	2.2	3		143	136	128	116	104	90	75	56
CDLF2 CDLT2-13	3	4		171	163	152	139	126	108	90	66
CDLF2 CDLT2-15	3	4		195	186	176	160	142	125	103	77
CDLF2 CDLT2-18	4	5.5		234	228	212	195	171	151	126	94

Performance table

Size and weight

Model	Driving motor		Q (m³/h)	2.5	3	4	5	6	7	8
Model	(kw)	(hp)	Q (m³/h)	2.5	3	4	5	6	7	8
CDLF4 CDLT4-2	0.75	1	H (m)	26	25	23	21	19	16	14
CDLF4 CDLT4-3	1.1	1.5		39	38	36	32	28	24	21
CDLF4 CDLT4-4	1.5	2		52	50	48	44	38	35	31
CDLF4 CDLT4-5	2.2	3		65	62	60	55	49	44	39
CDLF4 CDLT4-6	2.2	3		78	75	72	67	59	54	47
CDLF4 CDLT4-7	3	4		92	88	84	78	69	62	55
CDLF4 CDLT4-8	3	4		104	100	95	90	79	72	63
CDLF4 CDLT4-10	4	5.5		130	25	120	13	102	90	80
CDLF4 CDLT4-12	4	5.5		156	150	145	136	122	109	96
CDLF4 CDLT4-14	5.5	7.5		182	176	170	159	145	129	112
CDLF4 CDLT4-16	5.5	7.5		207	201	196	183	165	146	128

Performance table

Size and weight

Model	Driving motor		Q (m³/h)	7	8	9	10	11	12	13	14
Model	(kw)	(hp)	Q (m³/h)	7	8	9	10	11	12	13	14
CDLF8 CDLT8-2/1	0.75	1	H (m)	13	12	11.5	11	10.5	10	9.5	9
CDLF8 CDLT8-2	1.5	2		27	26	25	24	23	22	20	18
CDLF8 CDLT8-3	2.2	3		41	40	38	37	35	33	30	28
CDLF8 CDLT8-4	3	4		55	54	52	50	47	45	41	38
CDLF8 CDLT8-5	3	4		70	68	65	63	59	56	52	47
CDLF8 CDLT8-6	4	5.5		85	82	78	76	72	68	62	57
CDLF8 CDLT8-8	5.5	7.5		115	110	105	101	97	91	84	75
CDLF8 CDLT8-10	7.5	10		145	140	132	126	122	115	105	95
CDLF8 CDLT8-12	7.5	10		173	167	160	152	147	132	125	115
CDLF8 CDLT8-14	11	15		202	195	188	179	174	163	147	135

Performance table

Model	Driving motor		Q (m³/h)	10	12	14	16	18	20	22	24	26
Model	(kw)	(hp)	Q (m³/h)	10	12	14	16	18	20	22	24	26
CDLF16 CDLT16-2/1	2.2	3	H (m)	19	18.5	18	17	16	15	14	13	11
CDLF16 CDLT16-2	4	5.5		38	37	36	35	34	32	30	27	24
CDLF16 CDLT16-3	5.5	7.5		57	56	55	54	51	48	45	40	36
CDLF16 CDLT16-4	7.5	10		76	75	73	72	68	64	60	54	49
CDLF16 CDLT16-5	11	15		96	94	92	90	85	80	75	68	62
CDLF16 CDLT16-6	11	15		115	113	111	108	102	96	91	82	75
CDLF16 CDLT16-7	15	20		135	132	129	126	119	113	106	96	88
CDLF16 CDLT16-8	15	20		155	152	148	144	137	130	122	111	101
CDLF16 CDLT16-10	18.5	25		197	192	187	181	174	165	153	139	127
