One and Two Cylinder Diesel Engine
| AIR-COOLED 1 SYLINDER DIESEL ENGINE 3000RPM 3600RPM | 2SYLINDER | |||||||
| MODEL | 170F/FE | 178F/FE | 186FA/FE | 188FA/FE | 192FA/FE | 195F/FE | 1100F | 2V88 |
| TYPE | Single-cylinder、Vertical、4-Stroke、Air-cooled、Diesel engine | 2SYLINDER | ||||||
| Bore stroke(mm) | 70*55 | 78*59 | 86*70 | 88*75 | 92*75 | 92*75 | 100*85 | 2-88*72 |
| Displacement(ml) | 211 | 296 | 406 | 456 | 498 | 532 | 667 | 875 |
| Compression ratio | 19:1 | 20:1 | 19:1 | |||||
| Rtaed speed(rpm) | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
| Rated output(kw) | 2.5/2.8 | 3.68/4 | 5.9/6.5 | 6.7/7.5 | 7.5/8.2 | 9.0/9.2 | 9.5/11 | 12.5/15 |
| Rated output(HP) | 3.3/3.7 | 4.9/4.3 | 7.9/8.7 | 9/10 | 10/11 | 10.7/12.3 | 12.7/15 | 17/20 |
| Max.output(kw) | 2.8/3.1 | 4.0/4.4 | 6.5/7.0 | 7.5/8.2 | 8.2/9.0 | 9.9/10.2 | 10.5/12 | 13.7/16.5 |
| Max.output(HP) | 3.7/4.1 | 5.3/5.9 | 8.7/9.3 | 10/11 | 11/12 | 13.2/13.6 | 14/16 | 18/22 |
| Fuel consumption(G/KW.H) | <280 | |||||||
| Starting fashion | Manual / Electric | Electric | Electric | |||||
| Fuel tank (L) | 2.5L | 3.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | |
| Oil capactity(L) | 0.75L | 1.1L | 1.65L | 1.7L | 1.7L | 1.7L | 2.0L | 3.0L |
| Fuel type | 0#(summer) 10#(winter) diesel | |||||||
| Oil type | 10W/30SAE | |||||||
| Continuous running time (h) | 3h/2.5h | 2.5h/2.0h | 2.5h/2.0h | 2.5h/2.0h | 2.5h/2.0h | 2.5h/2.0h | 2.5h/2.0h | 2.5h/2.0h |
| Dimension L*W*H(mm) | 415*385*470 | 480*465*525 | 510*475*565 | 510*475*565 | 510*475*565 | 510*500*590 | 510*500*590 | 616*486*528 |
| G.W (KG) | 30 | 36 | 55 | 55 | 56 | 65 | 65 | 65 |
 |  |

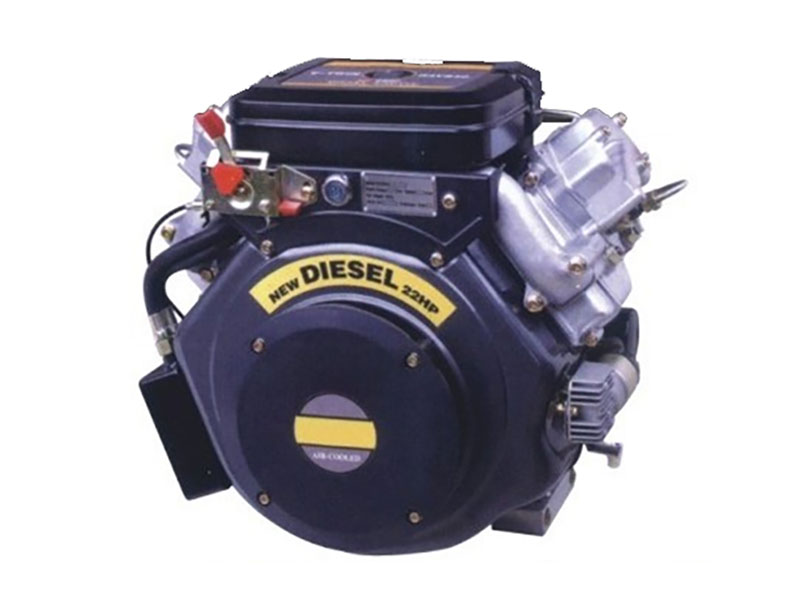

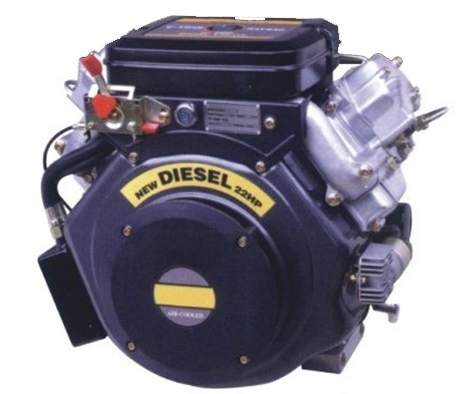

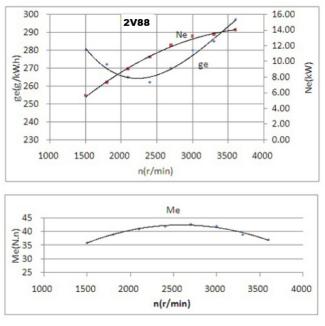

| DATA-SHEET 2-Cylinder | |
| Model | 2V88 |
| Engine Type | VType, 2-Cylinder ,4-Stroke, AIR-cooled |
| Broke * Stroke[mm] | 2-88*72 |
| Displacement[ML] | 875 |
| Compressed Ratio | 19:01 |
| Rated Speed[rpm] | 3000RPM 12.5KW 17HP 3600RPM 14.5KW 20HP |
| Rated Power[Kw/rpm] | 3000RPM 12.5KW 17HP 3600RPM 14.5KW 20HP |
| Starting System | Electric start |
| Lube Oil Capacity[L] | 3L |
| Fuel | 0#(summer), -10#(winter) diesel oil |
| Fuel consumption | <270 |
| Lube | SAE10W30 ( above CD grade ) |
| Power-take-off | Crankshaft |
| Overall Diemension [mm](L*W*H) | 616*486*528 |
| Net Weight [Kg] | 65 |
