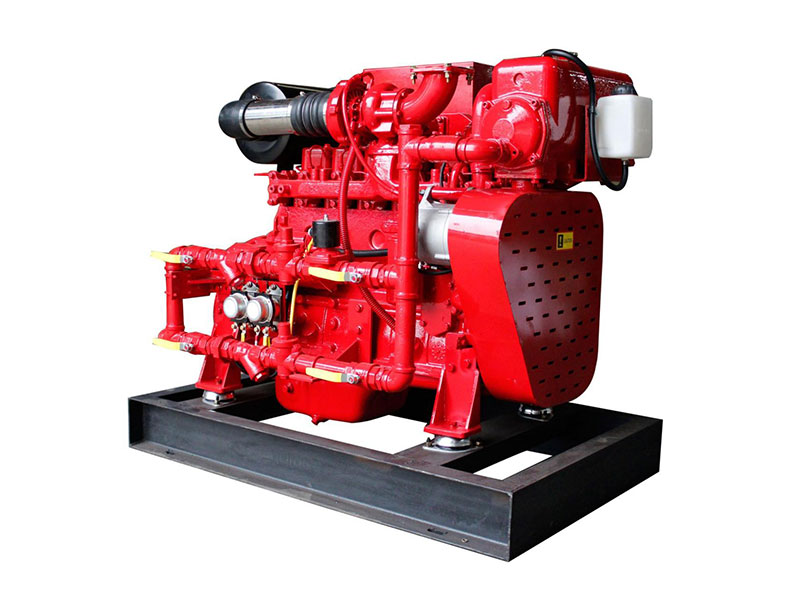

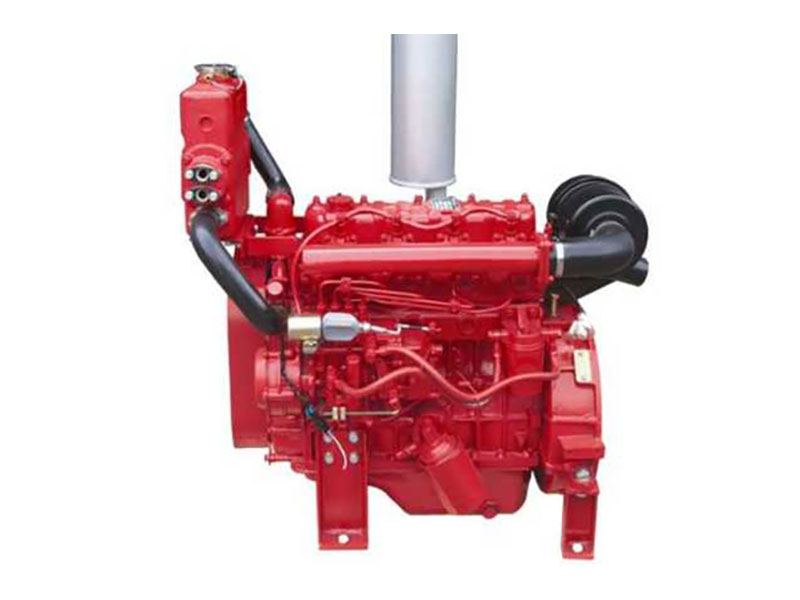

3-6 Cylinders Diesel Engine 27HP-330HP 3000RPM
| MODEL | 380B | 385B | 480B | 485B | 490B | 490BL | 490BZ | 4100B | 4102B | 4102BZ | 4105B | 4105BZ | 4108B | 4108BZ | 4108BZL |
| Engine Type | 3 Cylinders,Inline, 4-Stroke, Water-Cooling | 4 Cylinders, Inline, Water-Cooling, 4-Stroke | |||||||||||||
| Air Intake Type | Natural Aspiration | Natural Aspiration | Natural Aspiration | Natural Aspiration | Natural Aspiration | Natural Aspiration | Turbo-charging | Natural Aspiration | Natural Aspiration | TURBO CHARGING | Natural Aspiration | TURBO CHARGING | Natural Aspiration | TURBO CHARGING | TURBO CHARGING |
| Firing Order | 1-3-2 | 1-3-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 |
| Bore × Stroke mm | 80×90 | 80×90 | 80×90 | 80×95 | 90×100 | 90×105 | 90×105 | 102x118 | 102x118 | 102x118 | 105×118 | 105×118 | 108×118 | 108×118 | 108×118 |
| Piston Displacement L | 1.357 | 1.532 | 1.8 | 2.27 | 2.54 | 2.672 | 2.672 | 3.857 | 3.857 | 3.857 | 4.087 | 4.087 | 4.324 | 4.324 | 4.324 |
| Rated Power KW HP | 20KW 27HP | 26KW 35HP | 28KW 38HP | 36KW 49HP | 42KW 56HP | 45KW 60HP | 55KW 75HP | 55KW 75HP | 63KW 84HP | 75KW 100HP | 68KW 91HP | 76KW 102HP | 78KW 105HP | 85KW 113HP | 90KW 120HP |
| Rated Speed r/min | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Compression Ratio | 18∶1 | 18∶1 | 18∶1 | 18∶1 | 18∶1 | 18∶1 | 17.5∶1 | 17.5∶1 | 17.5∶1 | 17.5∶1 | 17.5∶1 | 17.5∶1 | 17:1 | 17:1 | 17:1 |
| Minimum BSFC at Full Load g/kwh | 253 | 253 | ≤215 | 245 | 245 | 238 | 240 | 252 | 252 | 252 | 238 | 238 | 238 | 238 | 230 |
| Rotation Direction of Crankshaft (Facing Flywheel) | Anti-clockwise | ||||||||||||||
| Lubrication Mode | Pressure Lubrication & Splash Lubrication | ||||||||||||||
| Cooling Mode | Forced Circulation Water Cooling | ||||||||||||||
| Starting Mode | Electric Starter | ||||||||||||||
| Dimension Length × Width ×Height mm | 583×494×630 | 583×494×630 | 687×494×630 | 696×492×650 | 696×492×650 | 720×568×700 | 720×568×700 | 805×620×730 | 805×620×730 | 805×620×730 | 847×795×839 | 847×795×839 | 847×795×839 | 847×795×839 | 847×795×839 |
| Net Weight kg | ≤175KG | ≤175KG | 195KG | ≤205KG | ≤205KG | ≤260KG | ≤275KG | ≤320KG | ≤320KG | ≤320KG | ≤350KG | ≤360KG | ≤350KG | ≤360KG | ≤360KG |
| Model | 6BD-G | 6BD-Z | 6BD-ZL |
| Power KW | 97.5KW-110KW | 113KW-125KW | 135KW-150KW |
| POWER HP | 130HP-150HP | 150HP-168HP | 180HP-200HP |
| Speed | 3000rpm | 3000rpm | 3000rpm |
| Type | water cooled,4 strokes,inline | ||
| Cylinder Number | 6 | 6 | 6 |
| Bore . Stroke (mm) | 102*130 | 102*130 | 102*130 |
| Displacement | 6.75L | 6.75L | 6.75L |
| Aspiration Type | Turbocharged | Turbocharged | Turbocharged & Inter Cooled |
| Cooling type | forced water cooled by water pump and radiator | ||
| Fuel Consumption (g/kw.h) | 233 | 233 | 233 |
| Exhaust temprature (℃） | ≤600 | ||
| Oil consumption (g/kw.h) | ≤1.68 | ||
| Start Voltage | 24V | 24V | 24V |
| Mode of Speed regulation | Mechnical | Mechnical | Mechnical |
| Lubrication method | splash compound | ||
| Crankshaft rotation direction | counterclock from flywheel side | ||
| Flywheel Housing | high strength PTO shaft | ||
| Standard Configuration | Radiator,Fan,Starter,Charge alternator,Air filter,Muffler,Stop Solenoid,PTO shaft,Fuel Tank(Optional),Meter Panel(Optional),Water Temperature Sensor and Oil Pressure Sensor (Optional) | ||
