Firefighting Pump system 60Hz
End suction type fire pumps/EDJ series 60hz
Fire fighting pump system Series

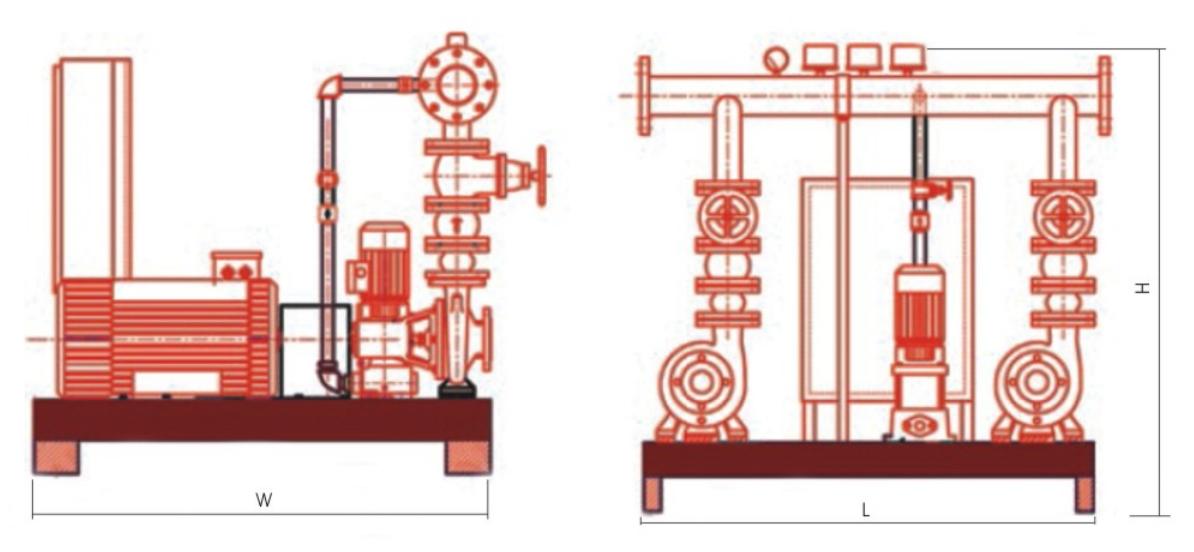

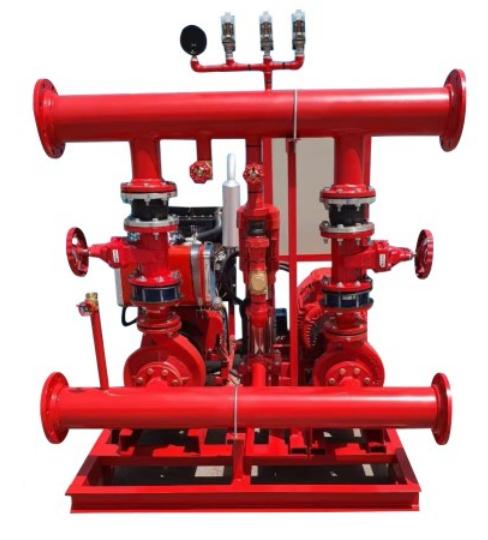

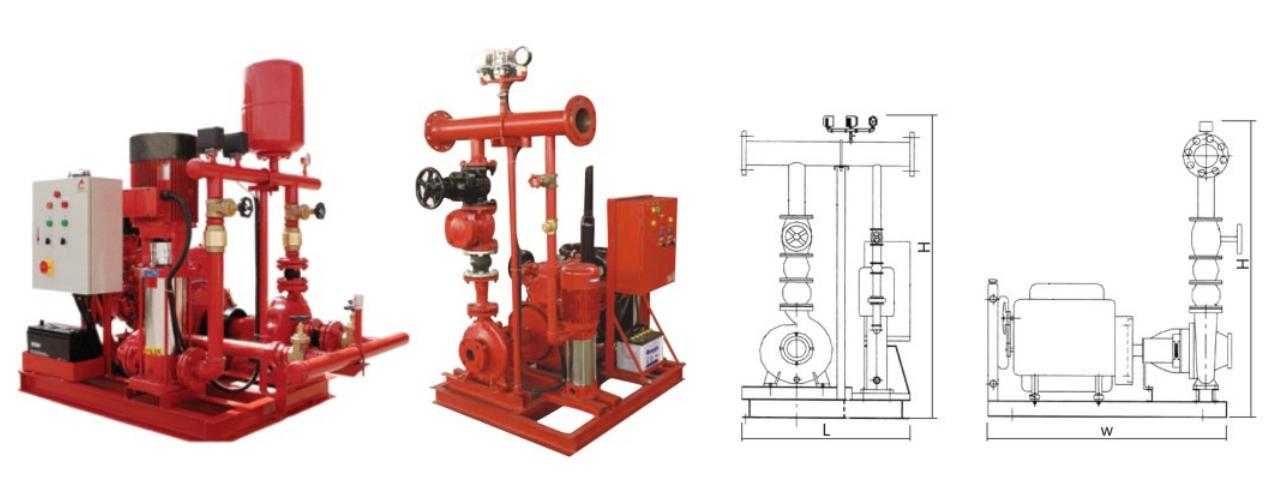

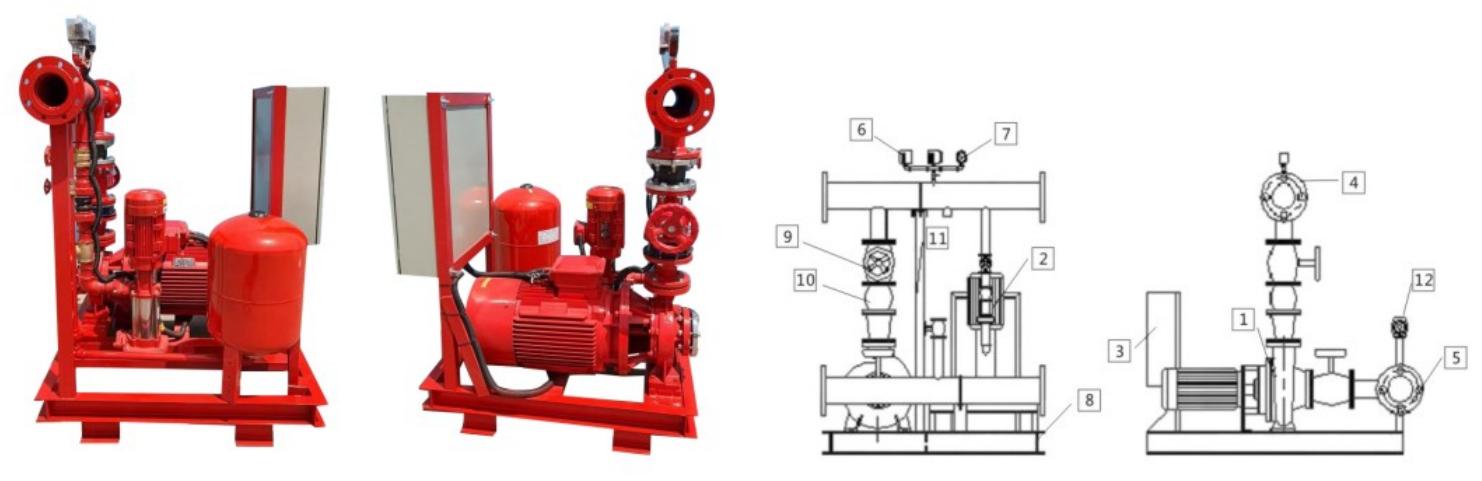

"Fire fighting pump system series" packages offers completed skid mounted unit including high qually Horizontal End Suction / Split Case Pumps that coupled with Heavy duty (Electrical/ Diesel) Drivers that assembled with full discharge line Control Gate & Check Valves along with flexible joints.
Pressure Switches & Gauge fited on well Supported Header, where al pre-piped, wired, & fabricated in common compact skid is fuly automatic operated through latest design control panel.
"Fire fighting pump system Series" innovated design has different combinaions & models that suite diferent cients requirements, as well as hazard application needs.
The standard models of “Fire fighting pump system series" are as Follows.
※Compact design pump sets
※Easily to handle install & maintain
※All pump elements , drives , controllers are all skid mounted
※Pre-piped,wired & factory tested
※From 50gpm~1500gpm
※6 bars to 12 bars
EDJseries
EDJ series 60hz

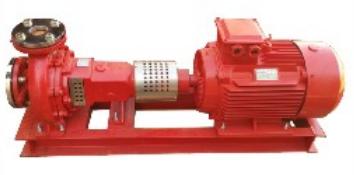

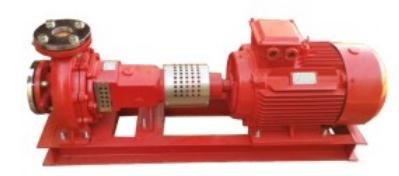

Electric Motor Pump

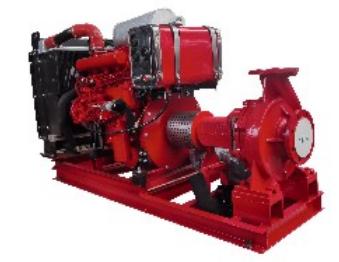

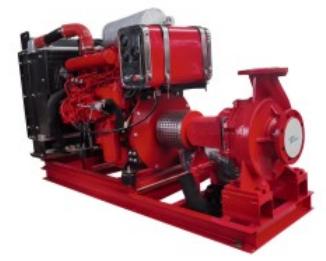

Diesel Pump
Jockey Pump
| FLOW | PRESSURE | TYPE MODEL | Motor Pump Model | Motor Power | Diesel Pump Model | Diesel Model | Diesel Power | Jockey Pump | Jockey Model |
| GPM | BAR |
|
|
|
| ||||
| 50GPM | 7 Bar | EDJ50 | ETA32-200 | 15HP | ETA32-200 | D186 | 10HP | 3HP | HMC170-6SV |
| 120GPM | 7 Bar | EDJ120 | ETA32-200 | 15HP | ETA32-200 | D192 | 13HP | 3HP | BRH-6-ES |
| 150GPM | 7 Bar | EDJ150 | ETA32-200 | 15HP | ETA32-200 | D192 | 13HP | 3HP | BRH-6-ES |
| 200GPM | 7 Bar | EDJ200 | ETA40-200 | 20HP | ETA40-250 | 380B | 27HP | 5.5HP | CDL-7A-5.5 |
| 250GPM | 7 Bar | EDJ250 | ETA50-200 | 25HP | ETA50-250 | 380B | 27HP | 5.5HP | CDL-7A-5.5 |
| 300GPM | 7 Bar | EDJ300 | ETA50-200 | 30HP | ETA50-250 | 480B | 38HP | 5.5HP | CDL-7A-5.5 |
| 400GPM | 7 Bar | EDJ400 | ETA65-200 | 40HP | ETA65-250 | 490B | 56HP | 5.5HP | CDL-7A-5.5 |
| 500GPM | 7 Bar | EDJ500 | ETA65-200 | 50HP | ETA65-250 | 490B | 56HP | 5.5HP | CDL-7A-5.5 |
| 750GPM | 7 Bar | EDJ750 | ETA80-200 | 75HP | ETA80-250 | 4102B | 75HP | 7.5HP | CDL-9A-7.5 |
| 1000GPM | 7 Bar | EDJ1000 | ETA100-200 | 100HP | ETA100-250 | 4105BZ | 100HP | 7.5HP | CDL-9A-10 |
| 1250GPM | 7 Bar | EDJ1250 | ETA100-200 | 125HP | ETA100-250 | 6BD-G | 130HP | 10HP | 15CDL-5A-10 |
End suction type fire pumps/DJ series 60hz
| FLOW | PRESSURE | TYPE MODEL | Diesel Pump Model | Diesel Model | Diesel Power | Jockey Pump | Jockey Model |
| GPM | BAR |
|
|
| |||
| 50GPM | 7 Bar | DJ50 | ETA32-200 | D186 | 10HP | 3HP | HMC170-65V |
| 120GPM | 7 Bar | DJ120 | ETA32-200 | D192 | 13HP | 3HP | BRH-6-ES |
| 150GPM | 7 Bar | DJ150 | ETA32-200 | D192 | 13HP | 3HP | BRH-6-ES |
| 200GPM | 7 Bar | DJ200 | ETA40-250 | 380B | 27HP | 5.5HP | CDL-7A-5.5 |
| 250GPM | 7 Bar | DJ250 | ETA50-250 | 380B | 27HP | 5.5HP | CDL-7A-5.5 |
| 300GPM | 7 Bar | DJ300 | ETA50-250 | 480B | 38HP | 5.5HP | CDL-7A-5.5 |
| 400GPM | 7 Bar | DJ400 | ETA65-250 | 490B | 56HP | 5.5HP | CDL-7A-5.5 |
| 500GPM | 7 Bar | DJ500 | ETA65-250 | 490B | 56HP | 5.5HP | CDL-7A-5.5 |
| 750GPM | 7 Bar | DJ750 | ETA80-250 | 4102B | 75HP | 7.5HP | CDL-9A-7.5 |
| 1000GPM | 7 Bar | DJ1000 | ETA100-250 | 4105BZ | 100HP | 7.5HP | CDL-9A-10 |
| 1250GPM | 7 Bar | DJ1250 | ETA100-250 | 6BD-G | 130HP | 10HP | CDL-11A-10 |
End suction type fire pumps/DJ series 60hz
| FLOW | PRESSURE | TYPE MODEL | Motor Pump | Motor Power | Jockey Pump | Jockey Model |
| GPM | BAR |
|
|
| ||
| 50GPM | 7 Bar | EJ50 | ETA32-200 | 15HP | 3HP | HMC170-65V |
| 120GPM | 7 Bar | EJ120 | ETA32-200 | 15HP | 3HP | BRH-6-HS |
| 150GPM | 7 Bar | EJ150 | ETA32-200 | 15HP | 3HP | BRH-6-HS |
| 200GPM | 7 Bar | EJ200 | ETA40-200 | 20HP | 5.5HP | CDL-7A-5.5 |
| 250GPM | 7 Bar | EJ250 | ETA50-200 | 25HP | 5.5HP | CDL-7A-5.5 |
| 300GPM | 7 Bar | EJ300 | ETA50-200 | 30HP | 5.5HP | CDL-7A-5.5 |
| 400GPM | 7 Bar | EJ400 | ETA65-200 | 40HP | 5.5HP | CDL-7A-5.5 |
| 500GPM | 7 Bar | EJ500 | ETA65-200 | 50HP | 5.5HP | CDL-7A-5.5 |
| 750GPM | 7 Bar | EJ750 | ETA80-200 | 75HP | 7.5HP | CDL-9A-7.5 |
| 1000GPM | 7 Bar | EJ1000 | ETA100-200 | 100HP | 7.5HP | CDL-9A-10 |
| 1250GPM | 7 Bar | EJ1250 | ETA100-200 | 125HP | 10HP | CDL-11A-10 |

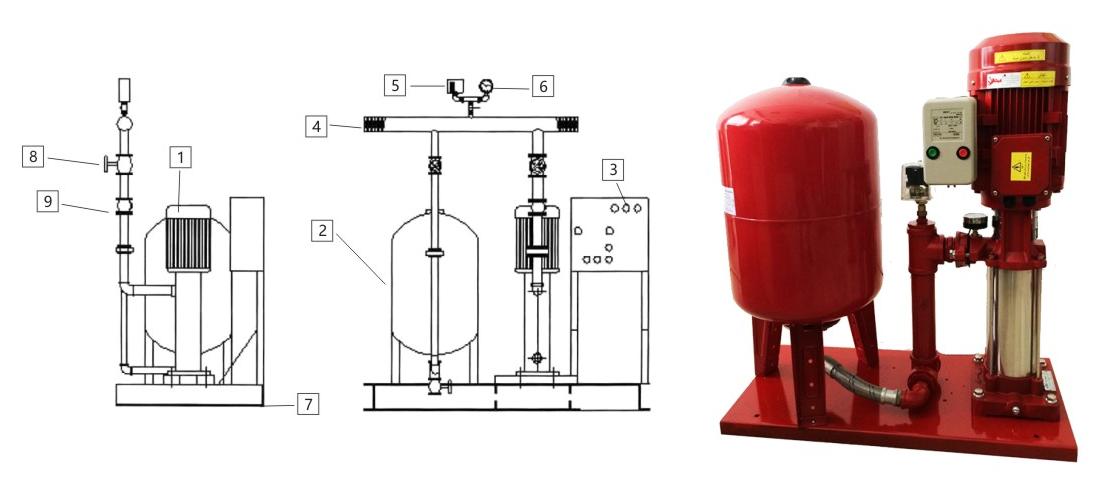

ONE JOCKEY PUMP SERIES 60hz
J12V 50GPM11M³/h 5Bar head Max
Jockey pump:HMC170-6Sv 3HP 2.2Kw 3500RPM 3phase 220/380V 60HZ
J25V 50GPM 11M³/h 8Bar head Max
Jockey pump:HMC35(5M)4HP 3Kw 3500RPM 3phase 220/380V 60HZ
J50V 50GPM 11M³/h10Bar head Max
Jockey pump:CDL-7A-5.5 5.5HP 4Kw 3500RPM 3phase 220/380V 60HZ
J75V 50GPM11M³h13Bar head Max
Jockey pump:CDL-9A-7.5 7.5HP5.5Kw 3500RPM 3phase 220/380V 60HZ
J100V 50GPM 11M³/h 16Bar head Max
Jockey pump:CDL-11A-10 10HP7.5Kw 3500RPM 3phase 220/380V 60HZ

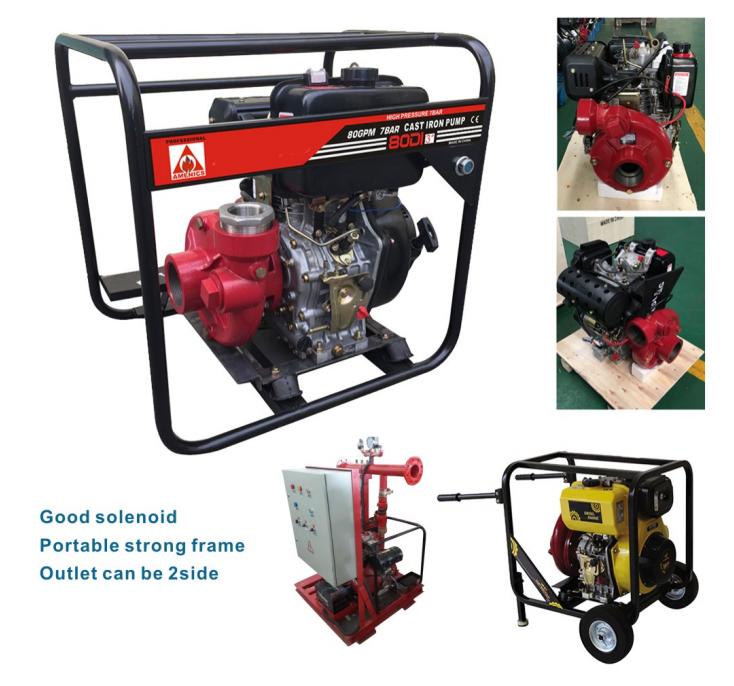

PORTABLE DIESEL ENGINE PUMP
| 50-80GPM 7BAR | 120-150GPM 7BAR | |||
| Model | 80DI | Model | 100DI | |
| Suction,dia.(in) | 3"/2" | Suction,dia.(in) | 3"/2" | |
| Con.capacity(GPM) | 50 | Con.capacity(GPM) | 150 | |
| Con.head(m) | 70 | Con.head(m) | 70 | |
| Suction head(m) | 8 | Suction head(m) | 8 | |
| Dry weight(kg) | 57 | Dry weight(kg) | 60 | |
