Firefighting Pump system 50Hz

  • FirefightingPumpsystem50Hz.jpg
  • FirefightingPumpsystem50Hz.jpg
    • 1

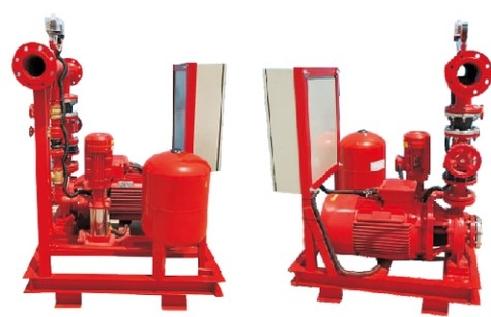

End suction type fire pumps/EDJ series

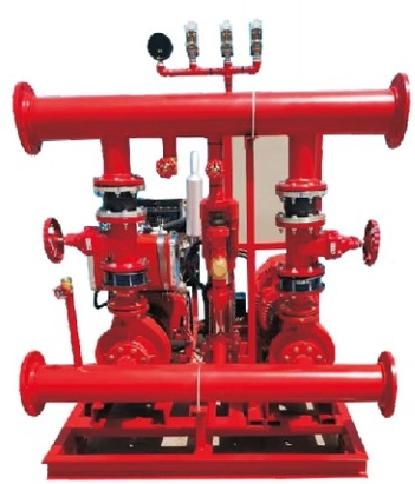

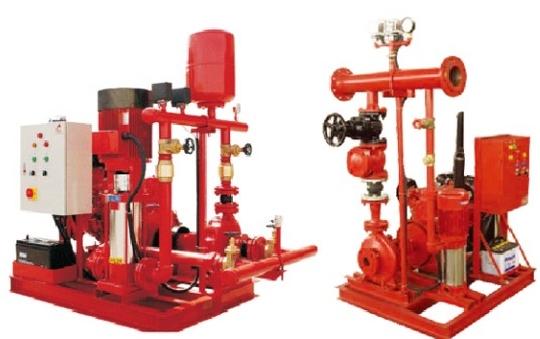

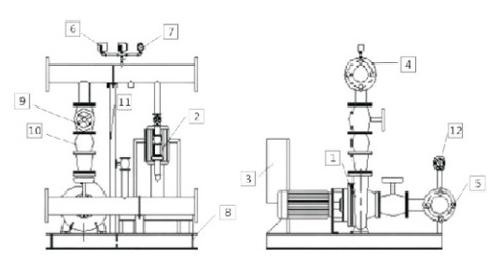

"Fire fighting pump system series"packages ffrs completed skid mounted unit including high quality Horizontal End Suction /Spit Case Pumps that coupled with Heavy duty(Electical Diesel)Drivers that assembled with fulldischarge Line Control Gate &Check Valves along with flexible joints.

Pressure Switches &Gauge ftted on wel Suported  Header,where all  pre-piped,wired,&fabricated  in common compact skid  is fuly automatic operated through latest design control panel.

"Fire fighting pump system Series"innovated design has different combinations &models that suite different clients requirements,as well as hazard application needs.

The standard models of"Fire fighting pump system series"are as Follows.


※Compact design pump sets
※Easilytohandleinstall&maintain
※Allpumpelements,drives,controllersareallskidmounted
※Pre-piped,wired &factory tested
※From 50gpm~1500gpm

※6 bars to 12 bars

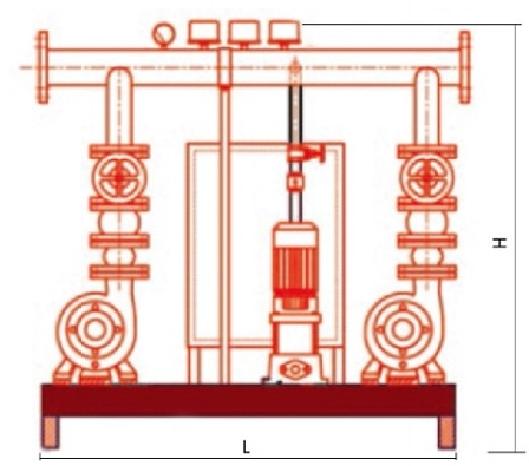

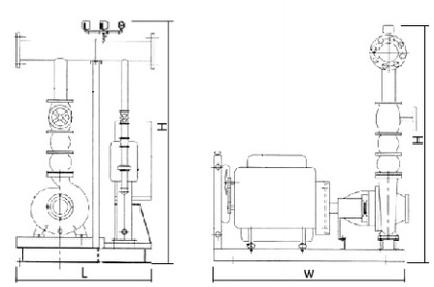

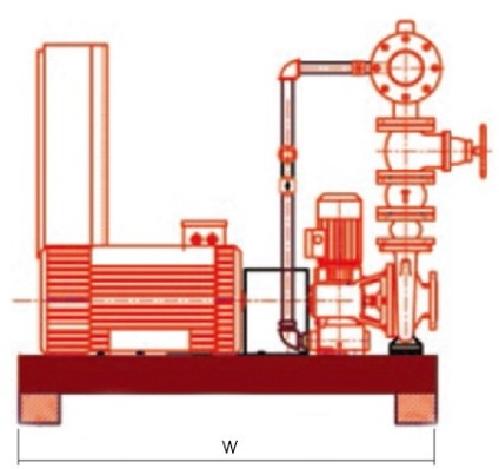

Consist of main End Suction Pump driven by Electrical Motor,Stand by End Suction Diesel Pump driven by Diesel Engine,&Vertical Jockey(maintenance) Pump that all are assembled with discharge line accessories,as well as connectedwithSkid Mounted Control Panel.Available Flow Capacities (50,120,150,200,250,300,400,500,750&1000,1250)GPM.



EDJseries



EDJ series 50hz
End suction type fire pumps

GPMBARReaular ModelMotor PowerPump
For Electric		Pump
For Diesel		Pump
Coupling Motor		MOTORDIESELJockey
46654c37324c4c4944706f6d4341734b32625a7745673d3d.jpgFD2.jpgFD3.jpgFD4.jpgFD5.jpgFD6.jpgFD7.jpgFD8.jpg
807barEDJ807-10-8.6-3ETA 32-250/75ETA32-250/75ETA32-250/75ETA32-250/75YE3-13252-2-7.5kw186-8.6HPCDL4x110/3HP
1007barEDJ1007-10-86-3ETA 32-250/75ETA32-250/75ETA32-250/75ETA32-250/75YE3-132S2-2-7.5kw186-8.6HPCDL4x110/3HP
1207barEDJ1207-10-12-3ETA 32-250/75ETA32-250/75ETA32-250/75ETA32-250/75YE3-132S2-2-7.5kw192-12HPCDL4x110/3HP
1507barEDJ1507-15-15-3ETA40-250/110ETA40-250/110ETA40-250/110ETA40-250/110YE3-160M1-2-11kw195-15HPCDL4x110/3HP
2007barEDJ2007-20-27-3ETA40-250/150ETA40-250/150ETA40-250/150ETA40-250/150YE3-160M2-2-15kw380-27HPCDL4x110/3HP
2507barEDJ250/7-25-27-5.5ETA 50-250/185ETA50-250/185ETA50-250/185ETA50-250/185YE3-160L-2-18.5kw380-27HPCDL8x120/5.5HP
3007barEDJ3007-30-32-5.5ETA 50-250/220ETA50-250/220ETA50-250/220ETA50-250/220YE3-180M-2-22kw385-32HPCDL8x120/5.5HP
3507barEDJ3507-30-32-5.5ETA 50-250/220ETA50-250/220ETA50-250/220ETA50-250/220YE3-180M-2-22kow385-32HPCDL8x120/5.5HP
4007barEDJ400/7-40-38-5.5ETA 65-250/300ETA65-250/300ETA65-250/300ETA65-250/300YE3-200L1-2-30kw480-38HPCDL8x120/5.5HP
5008barEDJ5008-50-56-5.5ETA 65-250/370ETA65-250/370ETA65-250/370ETA65-250/370YE3-200L2-2-37kw490B-56HPCDL8x120/5.5HP
7508barEDJ7508-75-75-7.5ETA 80-250/550ETA 80-250/550ETA 80-250/550ETA 80-250/550YE3-250M-2-55kw4100B-75HPCDL8x130/7.5HP
10008barED/10008-100-105-10ETA 100-250/750ETA100-250/750ETA100-250/750ETA100-250/750YE3-280S-2-75kw4108B-105HPCDL12x120/10HP
12508barEDJ1250V8-150-130-10
ETA125-250/1100ETA125-250/1100ETA125-250/1100YE3-3155-2-110kw6BD-G-130HPCDL12x120/10HP
50010barEDJ500/10-60-60-7.5
ETA65-315/450ETA65-315/450ETA65-315/450YE3-225M-2-45kw490BL-60HPCDL8x130/7.5HP
75010barEDJ75010-100-105-10
ETA80-315/750ETA80-315/750ETA80-315/750YE3-280S-2-75kw4108B-105HPCDL12x120/10HP
100010barEDJ1000V10-120-120-10
ETA100-315/900ETA100-315/900ETA100-315/900YE3-280M-2-90kw4108BZL-120HPCDL12x120/10HP
125010barEDJ1250V10-180-180-10
ETA125-315/1320ETA125-315/1320ETA125-315/1320YE3-315M-2-132kw6BD-ZL-180HPCDL12x120/10HP
50013barEDJ50013-100-105-10
ETA65-315/750ETA65-315/750ETA65-315/750YE3-280S-2-75kw4108B-105HPCDL12x120/10HP
75013barEDJ75013-125-113-10
ETA80-315/900ETA80-315/900ETA80-315/900YE3-280M-2-90kw4108BZ-113HPCDL12x120/10HP
100013barEDJ1000/13-150-180-10
ETA100-315/1100ETA100-315/1100ETA100-315/1100YE3-3155-2-110kw6BD-ZL-180HPCDL12x120/10HP
125013barEDJ1250/13-220-200-10
ETA125-315/1600ETA125-315/1600ETA125-315/1600YE3-315L1-2-160kW6BD-ZL-200HPCDL12x120/10HP
150013barEDJ150013-220-200-10
ETA125-315/1600ETA125-315/1600ETA125-315/1600YE3-315L1-2-160kw6BD-ZL-200HPCDL12x120/10HP


End suction type fire pumps/DJ series 50hz



GPMBARRECULARMODELPUMP FOR DIESEL
3000RPM		DIESELJOCKEY





80 7barDJ80/7-8.6-3ETA32-250/75186-8.6HPCDL4×110/3HP
100 7barDJ100/7-8.6-3ETA32-250/75186-8.6HPCDL4×110/3HP
120 7barDJ120/7-12-3ETA32-250/75H192-12HPCDL4×110/3HP
150 7barDJ150/7-15-3ETA40-250/110195-15HPCDL4×110/3HP
200 7barDJ200/7-27-3ETA40-250/150380-27HPCDL4×110/3HP
250 7barDJ250/7-27-5.5ETA50-250/185380-27HPCDL8×120/5.SHO
300 7barDJ300/7-32-5.5ETA50-250/220385-32HPCDL8×120/5.5HP
350 7barDJ350/7-32-5.5ETA50-250/220385-32HPCDL8×120/5.5HP
400 7barDJ400/7-38-5.5ETA65-250/300480-38HPCDL8×120/5.5HP
500 8barDJ500/8-56-5.5ETA65-250/370490B-56HPCDL8×120/5.5HP
750 8barDJ750/8-75-7.5ETA80-250/55041008-75HPCDL8×130/7.5HP
1000 8barDJ/1000/8-105-10ETA100-250/7504108B-105HPCDL12×120/1OHP
1250 8barDJ1250/8-130-10ETA125-250/110068D-G-130HPCDL12×120/10HP
500 10barDJ500/10-60-7.5ETA65-315/450490BL-60HPCDL8×130/7.5HP
750 10barDJ750/10-105-10ETA80-315/75041088-105HPCDL12×120/10HP
1000 10bar   DJ1000/10-120-10ETA100-315/9004108BZL-120HPCDL12×120/10HP
1250 10bar   DJ1250/10-180-10P5125-315/132068D-ZL-180HPCDL12×120/10HP
500 13bar  DJ500/13-105-10ETA65-315/7504108B-105HPCDL12×120/10HP
750 13bar  DJ750/13-113-10ETA80-315/9004108BZ-113HPCDL12×120/1OHP
1000 13bar   DJ1000/13-180-10P5100-315/110068D-ZL-180HPCDL12×120/10HP
1250 13bar   DJ1250/13-200-10ETA125-315/16006BD-ZL-200HPCDL12×120/10HP
1500 13bar   DJ1500/13-200-10ETA125-315/16006BD-ZL-200HPCDL12×120/10HP


End suction type fire pumps/EJ series 50hz



GPMBAR   REGULAR    MODELMOTOR    PUMP PUMP COUPLING MOTORMOTORJOCKEY






80 7bar   EJ80/7-10-3ETA32-250/75   ETA32-250/75YE3-13252-2-7.5kwCDL4×110/3HP
100 7bar   EJ100/7-10-3ETA32-250/75 ETA32-250/75YE3-132S2-2-7.5kwCDL4×110/3HP
120 7bar   EJ120/7-10-3ETA32-250/75DETA32-250/75HYE3-132S2-2-7.5kwCDL4×110/3HP
150 7bar   EJ150/7-15-3ETA40-250/110ETA40-250/110YE3-160M1-2-11kwCDL4×110/3HP
200 7bar   EJ200/7-20-3ETA40-250/150ETA40-250/150YE3-160M2-2-15kwCDL4×110/3HP
250 7barEJ250/7-25-5.5ETA50-250/185ETA50-250/185YE3-160L-2-18.5kwCDL8×120/5.5HP
300 7barEJ300/7-30-5.5ETA50-250/220ETA50-250/220YE3-180M-2-22kwCDL8×120/5.5HP
350 7barEJ350/7-30-5.5ETA50-250/220ETA50-250/220YE²-180M-2-22kowCDL8×120/5.5HP
400 7barEJ400/7-40-5.5ETA65-250/300ETA65-250/300YE3-200L1-2-30kwCDL8×120/5.5HP
500 8barEJ500/8-50-5.5ETA65-250/370ETA65-250/370YE3-200L2-2-37kwCDL8×120/5.5HP
750 8barEJ750/8-75-7.5ETA80-250/550ETA80-250/550YE3-250M-2-55kwCDL8×13017.5HP
1000 8barEJ/1000/8-100-10ETA100-250/750ETA100-250/750YE3-280S-2-75kwCDL12×120/10HP
1250 8barEJ1250/8-150-10
ETA125-250/1100YE3-3155-2-110kwCDL12×120/10HP
500 10barEJ500/10-60-7.5
ETA65-315/450YE3-225M-2-45kwCDL8×130/7.5HP
750 10barEJ750/10-100-10
ETA80-315/750YE3-280S-2-75kwCDL12×120/10HP
1000 10barEJ1000/10-120-10
ETA100-315/900YE3-280M-2-90kwCDL12×120/10HP
1250 10barEJ1250/10-180-10
ETA125-315/1320YE3-315M-2-132kwCDL12×120/10HP
500 13barEJ500/13-100-10
ETA65-315/750YE3-280S-2-75kwCDL12×120/10HP
750 13barEJ750/13-125-10
ETA80-315/900YE3-280M-2-90kwCDL12×120/10HP
1000 13barEJ1000/13-150-10
ETA 100-315/1100YE3-3155-2-110kwCDL12×120/10HP
1250 13barEJ1250/13-220-10
ETA125-315/1600YE3-315L1-2-160kwCDL12×120/10HP
1500 13barEJ1500/13-220-10
ETA 125-315/1600YE3-315L1-2-160kwCDL12×120/10HP

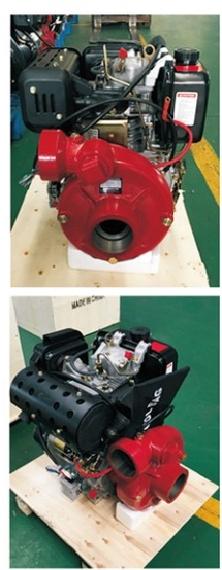

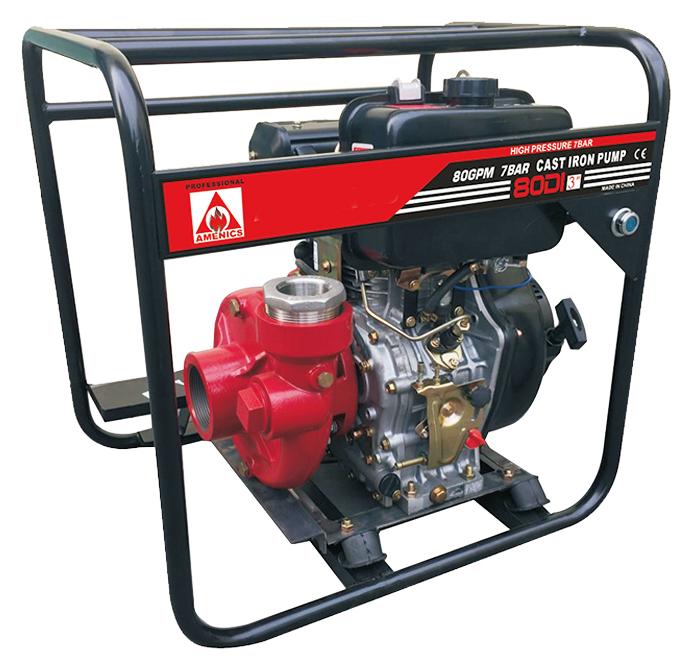

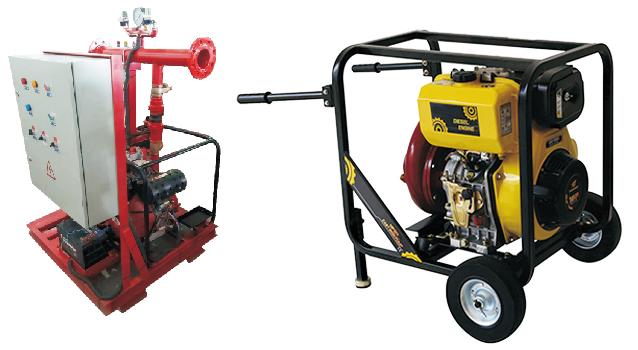

PORTABLE DIESEL ENGINE PUMP

Good solenoid
Portable strong frame
Outlet can be 2side


50-80GPM    7BARM
120-150GPM    7BAR
Model80DI
Model100DI
Suction,dia.(in)3"/2"
Suction,dia.(in)3"/2"
Con.capacity(GPM)50
Con.capacity(GPM)150
Con.head(m)70
Con.head(m)70
Suction  head(m)8
Suction head(m)8
Dry  weight(kg)57
Dry weight(kg)60


Upper： 3-6 Cylinders Diesel Engine 27HP-330HP 3000RPM
