END SUCTION PUMP 50HZ

  • END-SUCTION-PUMP-50HZ.jpg
  • END-SUCTION-PUMP-50HZ.jpg
    • 1

END SUCTION PUMP 50HZS ERIES

PERFORMANCE RANGE
Flowrateupto6200I/min(372m³/h)(1650GPM)
Dynamic head up to 112m(367 feet)
Suction lift up to 7 m

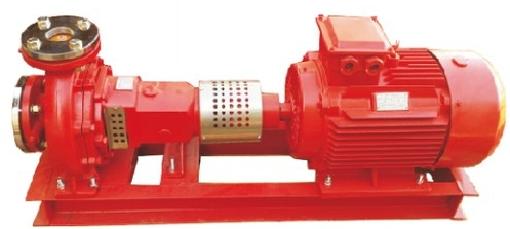

END SUCTION PUMP 50HZ1.jpg

BARESHAFT TYPE

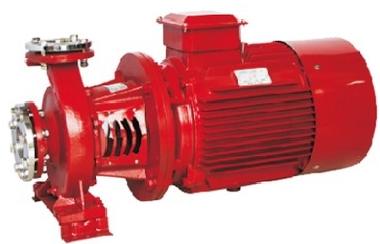

END SUCTION PUMP 50HZ2.jpg

BARESHAFT TYPE

GPM BAR MOTOR      PUMP PUMPFOR       ELECTRIC MOTOR PUMPFOR       ELECTRIC





80  7bar ETA32-250/75 ETA32-250/75 YE3-13252-2-7.5kw ETA32-250/75
100  7bar ETA32-250/75 ETA32-250/75 YE3-132S2-2-7.5kw ETA32-250/75
120  7bar ETA32-250/75D ETA32-250/75H YE3-132S2-2-7.5kw ETA32-250/75H
150  7bar ETA40-250/110 ETA40-250/110 YE3-160M1-2-11kw ETA40-250/110
200  7bar ETA40-250/150 ETA40-250/150 YE3-160M2-2-15kw ETA40-250/150
250  7bar ETA50-250/185 ETA50-250/185 YE3-160L-2-18.5kw ETA50-250/185
300  7bar ETA50-250/220 ETA50-250/220 YE3-180M-2-22kw ETA50-250/220
350  7bar ETA50-250/220 ETA50-250/220 YE²-180M-2-22kow ETA50-250/220
400  7bar ETA65-250/300 ETA65-250/300 YE3-200L1-2-30kw ETA65-250/300
500  8bar ETA65-250/370 ETA65-250/370 YE3-200L2-2-37kw ETA65-250/370
750  8bar ETA80-250/550 ETA80-250/550 YE3-250M-2-55kw ETA80-250/550
1000  8bar ETA100-250/750 ETA100-250/750 YE3-280S-2-75kw ETA100-250/750
1250  8bar ETA125-250/1100 YE3-3155-2-110kw ETA125-250/1100
500  10bar ETA65-315/450 YE3-225M-2-45kw ETA65-315/450
750  10bar ETA80-315/750 YE3-280S-2-75kw ETA80-315/750
1000  10bar ETA100-315/900 YE3-280M-2-90kw ETA100-315/900
1250  10bar ETA125-315/1320 YE3-315M-2-132kw ETA125-315/1320
500  13bar ETA65-315/750 YE3-280S-2-75kw ETA65-315/750
750  13bar ETA80-315/900 YE3-280M-2-90kw ETA80-315/900
1000  13bar ETA 100-315/1100 YE3-3155-2-110kw ETA100-315/1100
1250  13bar ETA125-315/1600 YE3-315L1-2-160kw ETA125-315/1600
1500  13bar ETA125-315/1600 YE3-315L1-2-160kw ETA125-315/1600

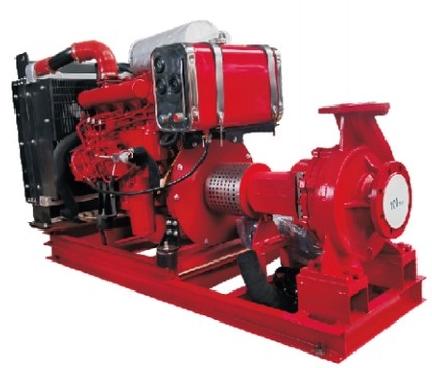

DIESEL ENGINE WITH BARESHAFT PUMP
ETABARE32-200

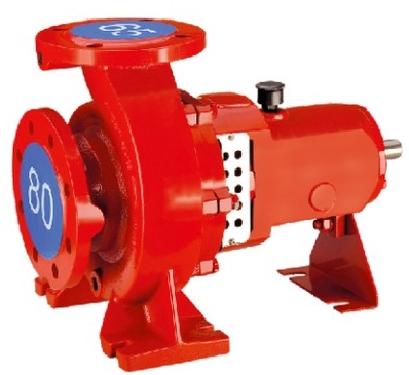

END SUCTION PUMP 50HZ3.jpg

END SUCTION PUMP 50HZ4.jpg


GPM BAR PUMPFORDIESEL DIESEL      3000RPM SUCTION/DISCHARGE

inch



80  7bar ETA32-250/75 186-8.6HP 2”/1.25"
100  7bar ETA32-250/75 186-8.6HP 2”/1.25"
120  7bar ETA32-250/75H 192-12HP 2”/1.25"
150  7bar ETA40-250/110 195-15HP 2”/1.25"
200  7bar ETA40-250/150 380-27HP 2”/1.25"
250  7bar ETA50-250/185 380-27HP 2.5“/2
300  7bar ETA50-250/220 385-32HP 2.5“/2
350  7bar ETA50-250/220 385-32HP 2.5“/2
400  7bar ETA65-250/300 480-38HP 3”/2.5"
500  8bar ETA65-250/370 490B-56HP 3”/2.5"
750  8bar ETA80-250/550 4100B-75HP 4"/3“
1000  8bar ETA100-250/750 41088-105HP 5“/4"
1250  8bar ETA125-250/1100 6BD-G-130HP 6”/5“
500  10bar ETA65-315/450 490BL-60HP 3”/2.5"
750  10bar ETA80-315/750 41088-105HP 4"/3"
1000  10bar ETA100-315/900 4108BZL-120HP 5"/4”
1250  10bar P5125-315/1320 6BD-ZL-180HP 6"/5“
500  13bar ETA65-315/750 41088-105HP 3“/2.5"
750  13bar ETA80-315/900 4108BZ-113HP 4"/3”
1000  13bar P5100-315/1100 68D-ZL-180HP 5"/4“
1250  13bar ETA125-315/1600 6BD-ZL-200HP 6”/5“
1500  13bar ETA 125-315/1600 6BD-ZL-200HP 6”/5“
