END SUCTION PUMP 60HZ
END SUCTION PUMP 60HZS ERIES
PERFORMANCE RANGE
Flow rate up to 6200 l/min(372m³/h)(1650GPM)
Dynamic head up to 112m(367 feet)
Suction lift up to 7 m
BARESHAFT TYPE
BARESHAFT TYPE

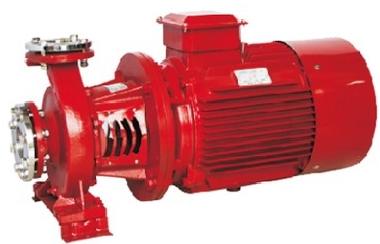

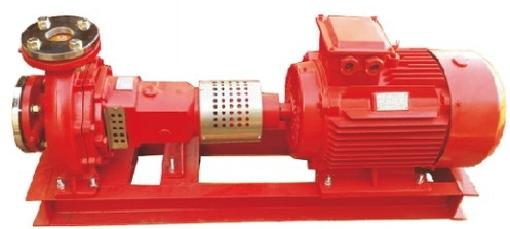

| END SUCTION PUMP WITH MOTOR 3500RPM 60HZ | |||||
| FLOW RATE GPM | PRESSURE BAR | MotorPump Model | Motor Power | Speed | Suction/Discharge inch |
| 50GPM | 7 Bar | ETA32-200 | 15HP | 3500RPM | 2"/1.25" |
| 120GPM | 7 Bar | ETA32-200 | 15HP | 3500RPM | 2"/1.25" |
| 150GPM | 7 Bar | ETA32-200 | 15HP | 3500RPM | 2"/1.25" |
| 200GPM | 7 Bar | ETA40-200 | 20HP | 3500RPM | 2.5"/1.5" |
| 250GPM | 7 Bai | ETA50-200 | 25HP | 3500RPM | 2.5"/2" |
| 300GPM | 7 Bar | ETA50-200 | 30HP | 3500RPM | 2.5"/2" |
| 400GPM | 7 Bar | ETA65-200 | 40HP | 3500RPM | 3“/2.5” |
| 500GPM | 7 Bar | ETA65-200 | 50HP | 3500RPM | 3”/2.5" |
| 750GPM | 7 Bar | ETA80-200 | 75HP | 3500RPM | 4"/3" |
| 1000GPM | 7 Bar | ETA100-200 | 100HP | 3500RPM | 5“/4” |
| 1250GPM | 7 Bar | ETA100-200 | 125HP | 3500RPM | 5"/4" |

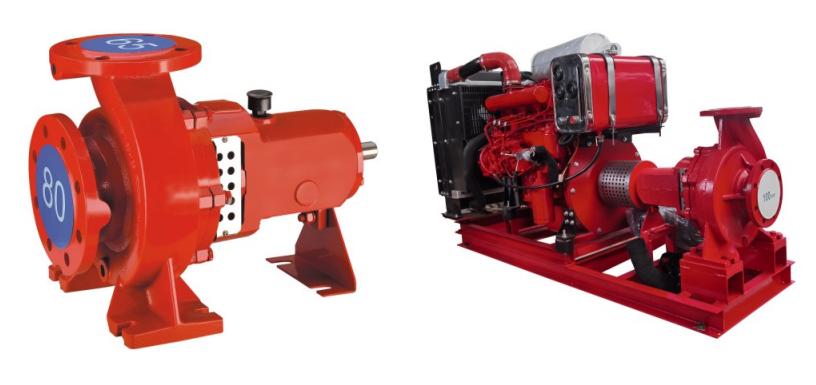

DIESELENGINEWITH BARESHAFT PUMP
| END SUCTION PUMP WITH DIESELENGINE 3000RPM | ||||||
| FLOW RATE GPM | PRESSURE BAR | Diesel Pump Model | Diesel Model | Diesel Power | Speed | Suction/Discharge inch |
| 50GPM | 7 Bar | ETA32-200 | D186 | 10HP | 3600RPM | 2”/1.25" |
| 120GPM | 7 Bar | ETA32-200 | D192 | 13HP | 3600RPM | 2"/1.25" |
| 150GPM | 7 Bar | ETA40-200 | D1100 | 13HP | 3600RPM | 2"/1.25" |
| 200GPM | 7 Bar | ETA40-250 | 380B | 27HP | 3000RPM | 2.5”/1.5” |
| 250GPM | 7 Bai | ETA50-250 | 380B | 27HP | 3000RPM | 2.5"/2" |
| 300GPM | 7 Bar | ETA50-250 | 480B | 38HP | 3000RPM | 2.5"/2" |
| 400GPM | 7 Bar | ETA65.250 | 490B | 56HP | 3000RPM | 3“/2.5” |
| 500GPM | 7 Bar | ETA65-250 | 490B | 56HP | 3000RPM | 3“/2.5” |
| 750GPM | 7 Bar | ETA80-250 | 4102B | 75HP | 3000RPM | 4“/3” |
| 1000GPM | 7 Bar | ETA100-250 | 4105BZ | 100HP | 3000RPM | 5"/4" |
| 1250GPM | 7 Bar | ETA100-250 | 6BD-G | 130HP | 3000RPM | 5"/4" |

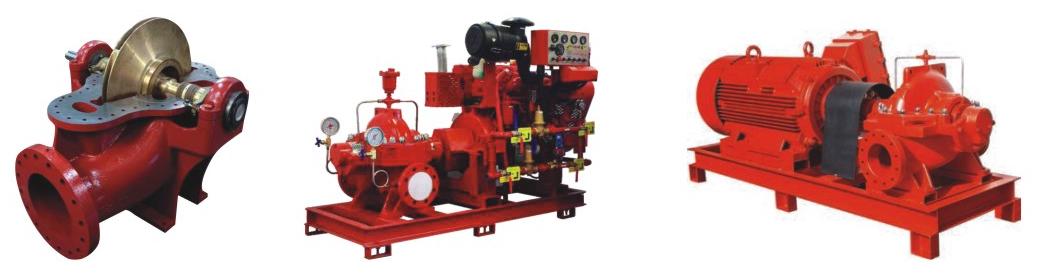

Split Case PUMP Model
※Capacity up to 2000 GPM with Pressure up to 12 bars.
※Split case design for easy maintenance & upkeep. Due to easy removal of upper casing & Inner assembly without disturbing piping including stuffing boxes, & bearing Housing.
※American Design in compliance with (UL) & NFPA -20 selection Requirements.
※Engine configuration.
※Available in Electrical Motor or Diesel
※Suitable for Commercial, Residential and Industrial Applications.
※Split case design for easy maintenance & upkeep. Due to easy removal of upper casing & Inner assembly without disturbing piping including stuffing boxes, & bearing Housing.
※American Design in compliance with (UL) & NFPA -20 selection Requirements.
※Engine configuration.
※Available in Electrical Motor or Diesel
※Suitable for Commercial, Residential and Industrial Applications.
Following only some popular model. other need can by requirement of sales man.
| Model | Suction/Discharge Size (MM) | Suction/Discharge Size (INCH) | Speed (Rpm) | Capacity (GPM) | Capacity (M³/H) | rated Head(M) | rated pressure(bar) | power (KW) | power (HP) |
| XS125-365 | 150-125 | 6"-5" | 1750 | 500 | 110 | 70 | 7 | ||
| XS125-365 | 150-125 | 6"-5" | 1750 | 750 | 170 | 70 | 7 | ||
| XS150-365 | 200-150 | 8"-6" | 1750 | 1000 | 230 | 70 | 7 | ||
| XS150-365 | 200-150 | 8"-6" | 1750 | 1500 | 340 | 70 | 7 | ||
| XS200-420 | 250-200 | 10"-8" | 1750 | 2000 | 460 | 70 | 7 |
| Model | Suction/Discharge Size (MM) | Suction/Discharge Size (INCH) | Speed (Rpm) | Capacity (GPM) | Capacity (M³/H) | rated Head(M) | rated pressure(bar) | power (KW) | power (HP) |
| XS80-210 | 100-80 | 4"-3" | 3500 | 500 | 110 | 70 | 7 | ||
| XS80-210 | 100-80 | 4"-3" | 3500 | 750 | 170 | 70 | 7 | ||
| XS80-210 | 100-80 | 4"-3" | 3500 | 1000 | 230 | 70 | 7 | ||
| XS100-250 | 125-100 | 5"-4" | 3500 | 1500 | 340 | 70 | 7 | ||
| XS125-230 | 150-125 | 6"-5" | 3500 | 2000 | 460 | 70 | 7 |
| Model | Suction/Discharge Size (MM) | Suction/Discharge Size (INCH) | Speed (Rpm) | Capacity (GPM) | Capacity (M³/H) | rated Head(M) | rated pressure(bar) | power (KW) | power (HP) |
| XS80-270 | 100-80 | 4"-3" | 2900 | 500 | 110 | 70 | 7 | 55 | 75 |
| XS80-270 | 100-80 | 4"-3" | 2900 | 750-1000 | 170-230 | 70 | 7 | 75 | 100 |
| XS100-250 | 125-100 | 5"-4" | 2900 | 1500 | 340 | 70 | 7 | 90 | 120 |
| XS125-290 | 150-125 | 6"-5" | 2900 | 2000 | 460 | 70 | 7 | 132 | 180 |
