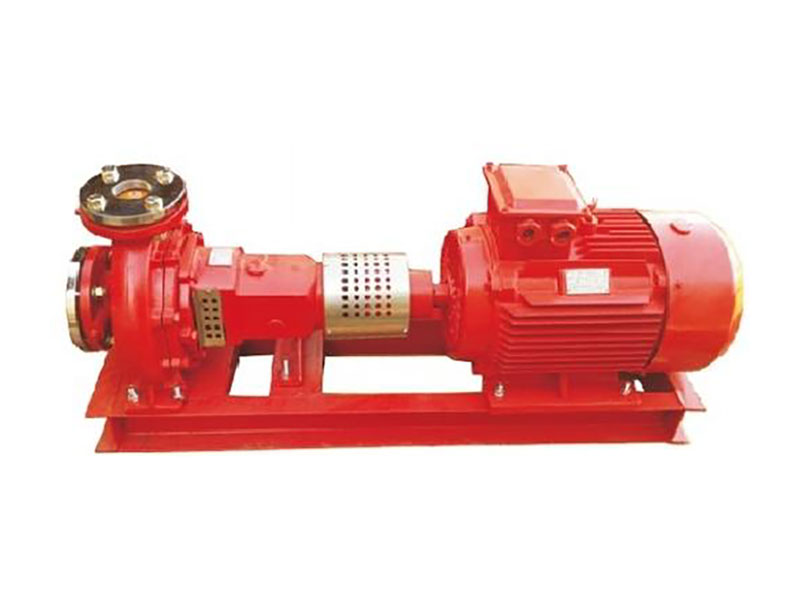

MOTOR 60HZ IE3

product details

NEWINUEVO/NOUVEAU

DESCRIPTION/DESCRIPCIONES/DESCRIPTION

◆ Design according to IEC60034 standard

◆ TOTAL ENCLOSED FAN COOLING TYPE motor

◆ YE3 high efficient motor

◆ Protection IP55 class F

◆ Quality NSK bearing

◆ Continuous duty S1

◆ Reliable used for fire fighting system etc.

◆ Ambient temperature up to+50℃

◆Coolingtype:IC411

TECHNICAL DATA/DATOS TECNICOS/DONNEES TECHNIQUES 60 Hz n=3500 1/min

MODEL	Power		RPM	η	η	η	cosφ	A			Nm	Ts/Tn	Tmax/Tn	Is/ln	dB(A)	Kgs
MODEL	kw	hp	1/min	%	75%	50%	cosφ	220V	380V	660V	Nm	Ts/Tn	Tmax/Tn	Is/ln	dB(A)	Kgs
YE3-801-2	0.75	1	3500	80.7	80.7	79.1	0.82	2.9	1.7	1	2.49	2.3	2.3	7	73	18.1
YE3-802-2	1.1	1.5	3500	82.7	82.7	81	0.83	4.2	2.4	1.4	3.65	2.2	2.3	7.3	73	19.5
YE3-90S-2	1.5	2	3500	84.2	84.2	82.5	0.84	5.5	3.2	1.8	4.95	2.2	2.3	7.6	76	23.3
YE3-90L-2	22	3	3500	85.9	85.9	84.2	0.85	8	4.6	2.7	7.26	2.2	2.3	7.6	77	27.1
YE3-100L-2	3	4	3500	87.1	87.1	85.4	0.87	10.4	6	3.5	9.9	2.2	2.3	7.8	79	38.8
YE3-112M-2	4	5.5	3500	88.1	88.1	86.3	0.88	13.5	78	4.5	13.1	2.2	2.3	8.3	80	48.3
YE3-132S1-2	5.5	7.5	3500	89.2	89.2	87.4	0.88	18.4	10.6	6.1	17.9	2	2.3	8.3	83	55.1
YE3-132S2-2	7.5	10	3500	90.1	90.1	88.3	0.88	24.9	14.4	8.3	24.4	2	2.3	7.9	84	69.2
YE3-160M1-2	11	15	3500	91.2	91.2	89.4	0.89	35.7	20.6	11.9	35.7	2	2.3	8.1	87	113
YE3-160M2-2	15	20	3500	91.9	91.9	90.1	0.89	48.3	27.9	16.1	48.6	2	2.3	8.1	87	123
YE3-160L-2	18.5	25	3500	92.4	92.4	90.6	0.89	59.2	34.2	19.7	60.1	2	2.3	8.2	90	142
YE3-180M-2	22	30	3500	92.7	92.7	90.8	0.89	70.1	40.5	23.4	71.1	2	2.3	8.2	90	182
YE3-200L1-2	30	40	3500	93.3	93.3	91.4	0.89	95	54.9	31.7	96.8	2	2.3	7.6	91	246
YE3-200L2-2	37	50	3500	93.7	93.7	91.8	0.89	117	67.4	38.9	119.4	2	2.3	7.6	91	265
YE3-225M-2	45	60	3500	94	94	92.1	0.9	140	80.8	46.7	144.9	2	2.3	7.7	93	323
YE3-250M-2	55	75	3500	94.3	94.3	92.4	0.9	171	98.5	56.9	176.9	2	2.3	7.7	93	413
YE3-280S-2	75	100	3500	94.7	94.7	92.8	0.9	232	134	77.4	240.8	1.8	2.3	7.1	94	546
YE3-280M-2	90	125	3500	95	95	93.1	0.9	277	160	92.4	288.9	1.8	2.3	7.1	94	569
YE3-315S-2	110	150	3500	952	95.2	93.3	0.9	338	195	113	352.8	1.8	2.3	7.1	94	897
YE3-315M-2	132	180	3500	95.4	95.4	93.5	0.9	405	234	135	4233	1.8	2.3	7.1	95	1029
YE3-315L1-2	160	220	3500	95.6	95.6	93.7	0.91	483	279	161	512.8	1.8	2.3	7.2	95	1067
YE3-315L2-2	200	270	3500	95.8	95.8	93.9	0.91	604	349	202	640.9	1.8	2.2	7.2	95	1194
YE3-355M-2	250	340	3500	95.8	95.8	93.9	0.91	755	436	252	800.6	1.6	2.2	7.2	103	1685
YE3-355L-2	315	430	3500	95.8	95.8	93.9	0.91	951	549	317	1009	1.6	2.2	7.2	103	1734
60 Hz n=1750 1/min
MODEL	Power		RPM	η	η	η	cosφ	A			Nm	Ts/Tn	Tmax/Tn	Is/ln	dB(A)	Kgs
MODEL	kw	hp	1/min	%	75%	50%	cosφ	220V	380V	660V	Nm	Ts/Tn	Tmax/Tn	Is/ln	dB(A)	Kgs
YE3-801-4	0.55	0.75	1750	80.8	80.8	79.2	0.75	2.4	1.4	0.8	3.75	2.4	2.3	5.2	63	17.6
YE3-802-4	0.75	1	1750	82.5	82.5	80.9	0.75	3.1	1.8	1	5.04	2.3	23	6.6	63	18.4
YE3-90S-4	1.1	1.5	1750	84.1	84.1	82.4	0.76	4.5	2.6	1.5	7.27	2.3	23	6.8	66	24.2
YE3-90L-4	1.5	2	1750	85.3	853	83.6	0.77	6.1	3.5	2	9.91	2.3	23	7	66	29.7
YE3-100L1-4	2.2	3	1750	86.7	86.7	85	0.81	8.3	4.8	2.8	14.6	2.3	23	7.6	68	41.5
YE3-100L2-4	3	4	1750	87.7	87.7	85.9	0.82	10.9	6.3	3.6	20	2.3	23	7.6	68	46
YE3-112M-4	4	5.5	1750	88.6	88.6	86.8	0.82	14.5	8.4	4.8	26.5	2.2	23	7.8	72	63.2
YE3-132S-4	5.5	7.5	1750	89.6	89.6	87.8	0.83	19.4	11.2	6.5	36	2	23	7.9	74	71.2
YE3-132M-4	7.5	10	1750	90.4	90.4	88.6	0.84	26	15	8.7	49.1	2	23	7.5	77	85.1
YE3-160M-4	11	15	1750	91.4	91.4	89.6	0.85	37.2	21.5	12.4	71.7	2.2	23	7.7	78	121
YE3-160L-4	15	20	1750	92.1	92.1	90.3	0.86	49.9	28.8	16.6	97.8	2.2	23	7.8	82	142
YE3-180M-4	18.5	25	1750	92.6	92.6	90.7	0.86	61.1	35.3	20.4	120.2	2	23	7.8	82	181
YE3-180L-4	22	30	1750	93	93	91.1	0.86	72.4	41.8	24.1	142.9	2	2.3	7.8	82	209
YE3-200L-4	30	40	1750	93.6	93.6	91.7	0.86	98	56.6	32.7	194.2	2	23	7.3	84	284
YE3-225S-4	37	50	1750	93.9	93.9	92	0.86	121	69.6	40.2	237.9	2	23	7.4	85	328
YE3-225M-4	45	60	1750	94.2	94.2	92.3	0.86	146	84.4	48.7	289.4	2	23	7.4	86	363
YE3-250M-4	55	75	1750	94.6	94.6	92.7	0.86	178	103	59.5	353.7	2.2	23	7.4	86	442
YE3-280S-4	75	100	1750	95	95	93.1	0.88	236	136	78.5	482	2	23	6.9	89	569
YE3-280M-4	90	125	1750	95.2	952	93.3	0.88	282	163	94.1	578.4	2	23	6.9	89	639
YE3-315S-4	110	150	1750	95.4	95.4	93.5	0.89	341	197	114	706	2	2.2	7	89	939
YE3-315M-4	132	180	1750	95.6	95.6	93.7	0.89	409	236	136	847.2	2	2.2	7	92	1033
YE3-315L1-4	160	220	1750	95.8	95.8	93.9	0.89	494	285	165	1027	2	2.2	7.1	92	1126
YE3-315L2-4	200	270	1750	96	96	94.1	0.9	610	352	203	1282	2	2.2	7.1	92	1238
YE3-355M-4	250	340	1750	96	96	94.1	0.9	762	440	254	1602	2	2.2	7.1	101	1830
YE3-355L-4	315	430	1750	96	96	94.1	0.9	960	554	320	2019	2	2.2	7.1	101	1950
