Pressure Controls 5 to 8 bar
Special design for firefighting system
Against frequent start. Ensuring Flutter-free switching
Features
Large space for cable mounting
Easy to adjust
Accurate scale
Transparent, cover
Protection class: lP20 (lP65 with cable gland)
Worldwide approvals
Against Frequent start
Applications
Water pumps
Booster pumps

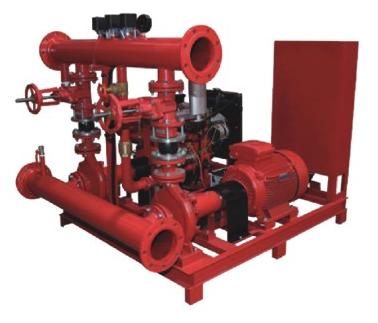

Fire-fighting equipment

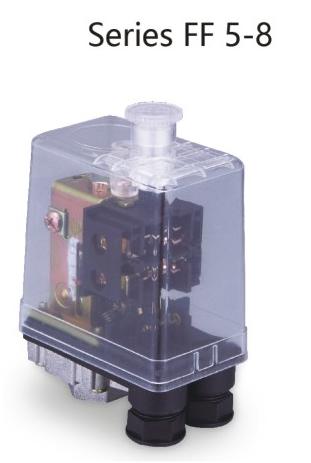

Amenics FF5-8 series of pressostats are suitable for a wide range of industrial and commercial applications. Their functions, as pressure switches, limiters or cut-outs can be utilized for:
· Monitoring and controlling the pressure of liquid orgaseous media in pipelines, tanks,vats,pressure vessels and apparatus.
· Duties in process control, cooling,pneumatics and hydraulics.
· Automatic switching of pump motorsfor supplying water to dwellings, booster pumps, fire-fighting equipment.
Mode of operation
The pressure of the monitored medium operates against a flat diaphragm, bellows or a plunger(depending on pressure range).A system of levers and springs works on a snap-action cascade switch of high resistance to vibration, ensuring flutter-free switching.

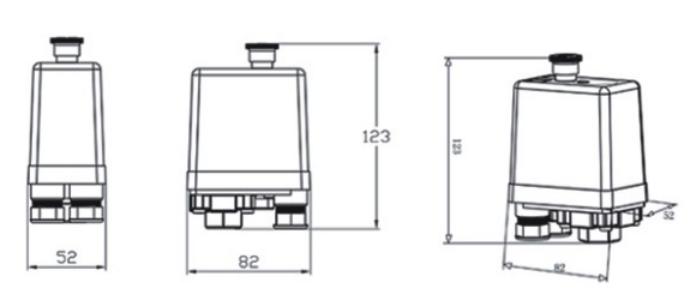

Dimensions:

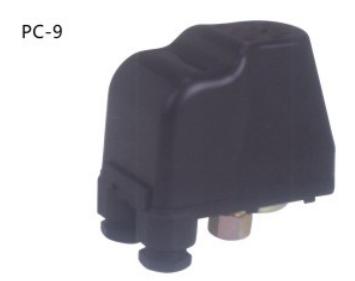

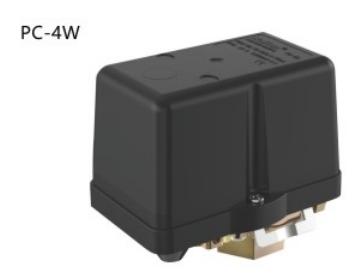

PRESSURE SWITCH
Product Description
TECHNICAL DATA
1.Pressure Range:15-175psi
2.Pressure Setting:15-35psi、20-40psi、30-50psi、40-60psi、
50-80psi、95-125psi、120-150psi、135-175psi
3.Rated Current:16(10)A
4.Rated Voltage:110V-240V
5.Frequency:50/60Hz
6.Max Ambient Temperature:55°C
7.Protection Degree:lP54
DESCRIPTIONS
1.Pressure switch used in water systems.
2.The switch start and stop the water pump automatically according to the setting pressure value.
3.Joint screw:1 way G1"male+2 way G1"Female.Hydraulics connection can choose:
4.Customized setting.

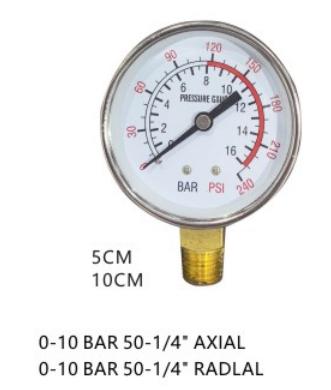

GAUGE
OPTIONALS
1.Crust according to customers' needs.
2.Hydraulics connection according to customers'needs.
3.Pressure setting according to customers' needs.
PACKING SIZE(cm) 54*35*23
PCS/CTN 50
N.W.(KGS) 18.7
G.W.(KGS) 21.1

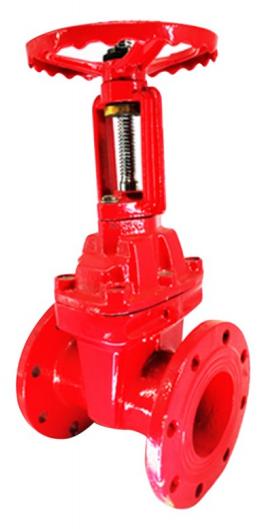

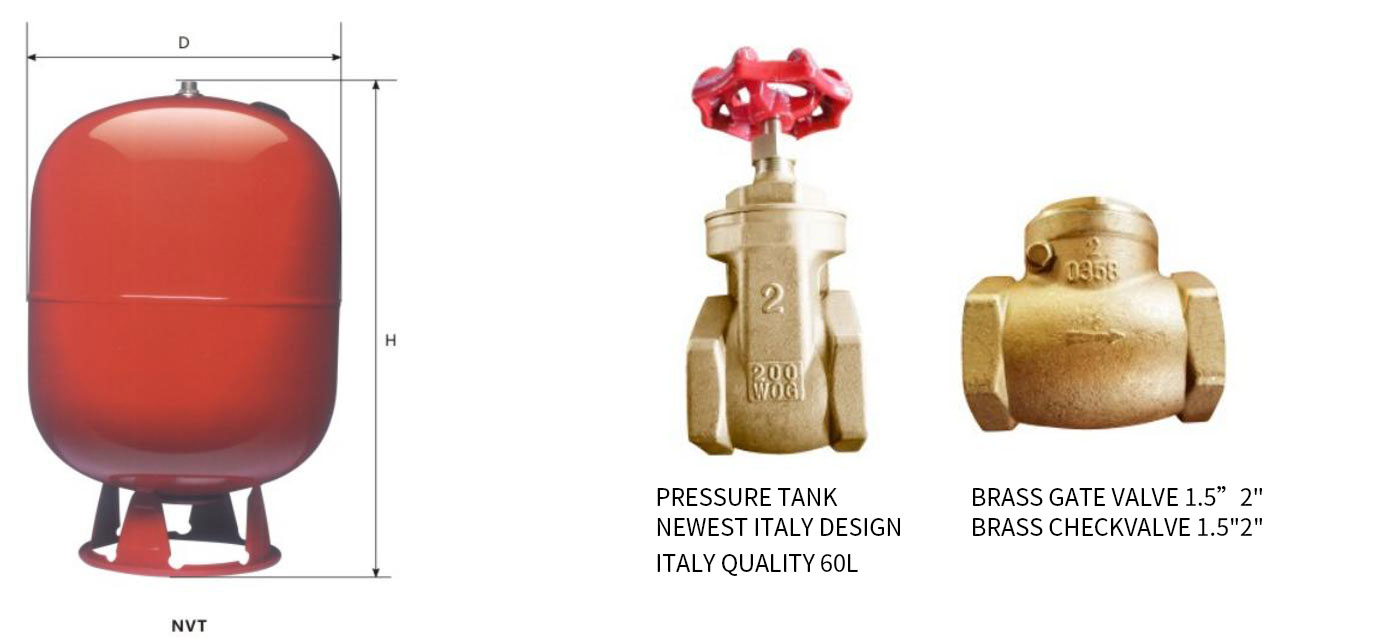

GATE VALVE

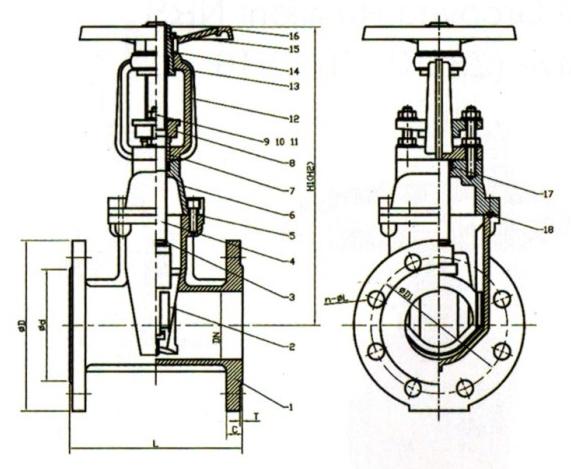

MATERIAL SPECIFICATION
| Part No | Part | Standard Specification | Options |
| 1 | Valve Body | EN-GJS-450-10 | |
| 2 | Resilient Wedge Dise | EN-GJS-450-10+EPDM | |
| 3 | 0-ring | NBR | EPDM |
| 4 | Stem | Ss420 | SS304,SS316,Al-bronze |
| 5 | Nut | Carbon Steel Zinc Plated | SS304.SS316 |
| 6 | Bonnet | EN-GJS-450-10 | SS304.SS316 |
| 7 | Stem Bushing | Brasss Hpb59-1 | SS304,SS316 |
| 8 | Gland | EN-GJS-450-10 | SS304,SS316 |
| 9 | Flat Washer | Carbon Steel Zinc Plated | Pressed Steel |
| 10 | Stud | Carbon Steel Zinc Plated | EPDM |
| 11 | Nut | Carbon Steel Zinc Plated | NBR |
| 12 | Yoke | EN-GJS-450-10 | |
| 13 | Nut | Brasss Hpb59-1 | |
| 14 | Washer | Brasss Hpb59-1 | |
| 15 | Locknut | Carbon Steel Zinc Plated | |
| 16 | Handwheel | EN-GJS-450-10 | PressedStee |
| 17 | Stem Packing | NBR | PDN |
| 18 | Bonnte Gasket | EPDM | NBR |
| MODEL | DN(mm) | DN( inch) | PN(KG) | Dimensions(mm) | ||||||||
| L | H1(dose) | H2(open) | φD | φD1 | φd | C | T | n-φL | ||||
| DN50 | 50 | 2" | 16 | 178 | 257 | 307 | 165 | 125 | 99 | 19 | 3 | 4-φ19 |
| DN65 | 65 | 2.5" | 16 | 190 | 305 | 370 | 185 | 145 | 118 | 19 | 3 | 4-φ19 |
| DN80 | 80 | 3" | 16 | 203 | 350 | 430 | 200 | 160 | 132 | 19 | 3 | 8-φ19 |
| DN100 | 100 | 4" | 16 | 229 | 422 | 522 | 220 | 180 | 156 | 19 | 3 | 8-φ19 |
| DN125 | 125 | 5" | 16 | 254 | 515 | 640 | 250 | 210 | 184 | 19 | 3 | 8-φ19 |
| DN150 | 150 | 6" | 16 | 267 | 563 | 713 | 285 | 240 | 211 | 19 | 3 | 8-φ23 |
| DN200 | 200 | 8" | 16 | 292 | 675 | 875 | 340 | 295 | 266 | 19 | 3 | 12-φ33 |
| DN250 | 250 | 10" | 16 | 330 | 905 | 1155 | 405 | 355 | 319 | 22 | 3 | 12-φ28 |
| DN300 | 300 | 12" | 16 | 356 | 1030 | 1330 | 460 | 410 | 370 | 24.5 | 4 | 12-φ28 |
| DN350 | 350 | 14" | 16 | 381 | 1210 | 1560 | 520 | 470 | 429 | 26.5 | 4 | 16-φ28 |
